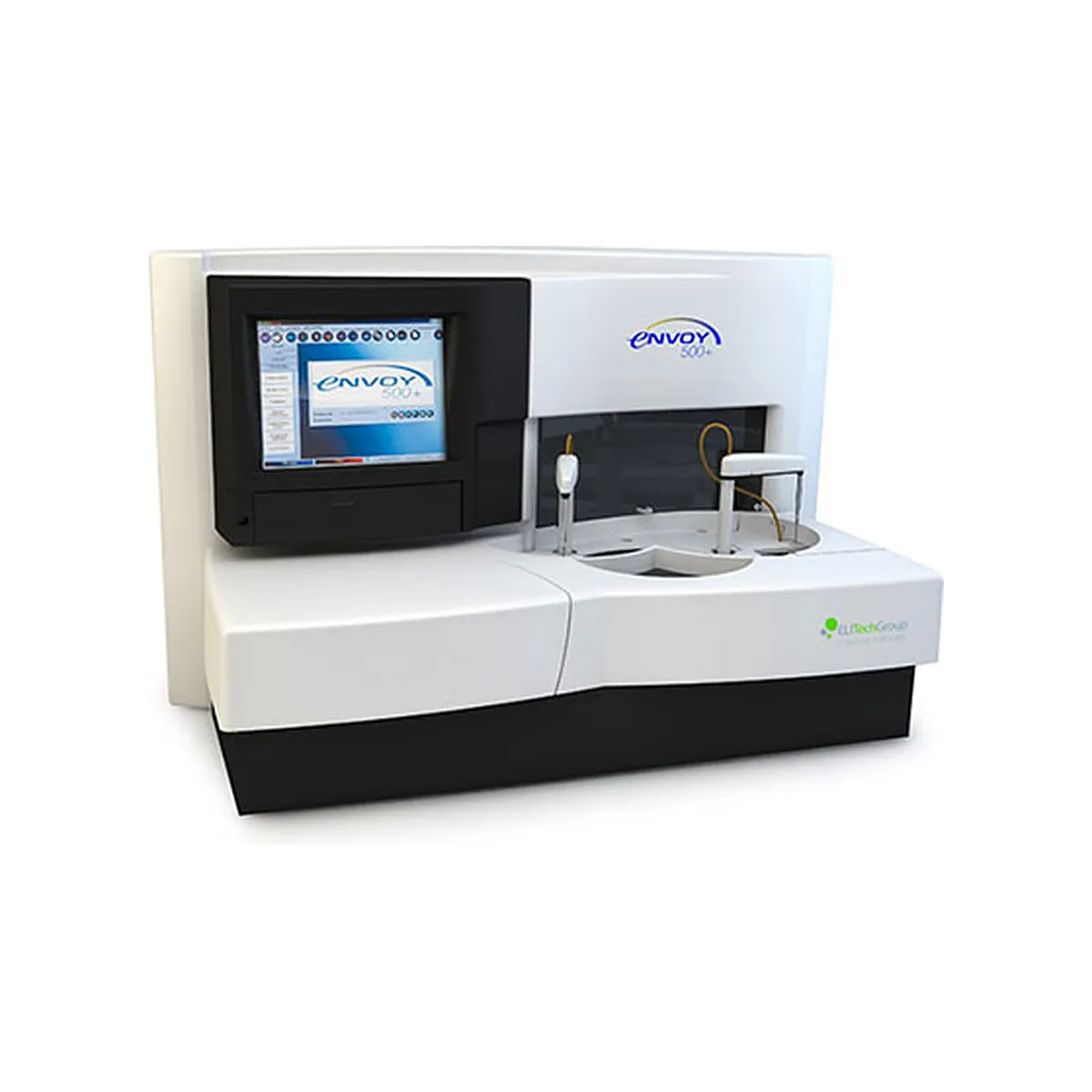

Envoy 500+

Features

Software

Touch Screen The Envoy® 500+ has a built-in LCD touch screen and is driven by the Windows® operating system. This provides greater ease of use and space savings by eliminating a bulky external monitor and CPU.

Quality Control

Quality Control results are stored in memory and easily displayed on the screen. QC can be evaluated using up to six Westgard rules and displayed with either the theoretical or calculated means.

Pre-Programmed Parameters

The Envoy reagent application parameters are pre-loaded into the software, saving you time and eliminating the possibility of data entry mistakes.

Reagent Handling

Large Capacity The Envoy 500+ holds up to 40 individual Envoy reagents (mono or dual), providing a longer walk-away operation.

Refrigerated Reagent Tray

Onboard refrigeration and storage ensures reagent stability, which increases reliability of results, while lowering laboratory costs.

Continuous Inventory Monitoring

Continuous inventory monitoring enables the operator to know the number of tests remaining for each reagent, minimizing waste.

Positive Reagent Identification

The reagent chamber contains an infrared barcode scanner capable of scanning Envoy barcoded reagents, automatically recognizing reagent position and lot information.

Sample Handling

Sample Wheel The Envoy 500+ sample wheel has 52 positions available for patient samples and 26 for calibrators and controls providing your laboratory high throughput capability. Primary tubes or sample cups can be used, providing the testing flexibility you need.

Clot Detection and Liquid Level Sensing

Clot detection and Liquid level sensing prevents reporting of invalid results from an insufficient or difficult sample. This ensures accurate results and proper treatment decisions.

Positive Sample Identification

The sample chamber contains an infared barcode scanner, capable of scanning your patient barcodes, eliminating the need to manually enter patient information and reducing the risk of sample errors that can cost you time and money.

Dry ISE

Dry Electrodes The Envoy 500+ utilizes a proven, dry, solid-state ISE (Ion Selective Electrode) that can be kept dry when not in use thus reducing reagent consumption.

Four Parameters

The ISE system has four electrodes, Na+, K+, Cl- and CO2, providing a complete test panel without adding an enzymatic procedure or using a traditional ‘wet’ electrode. This significantly reduces costs and maintenance time, while increasing reliability of results.

Reaction Cuvettes

Glass Cuvettes The Envoy 500+ contains 34 reusable glass cuvettes that are automatically washed on board, which eliminates the cost of expensive disposable cuvettes.

Increased Walk-away Time

The reusable glass cuvettes also provide your lab longer walk-away time than a system using disposable cuvettes, which requires you to return to the instrument to reload cuvettes on a regular basis.
