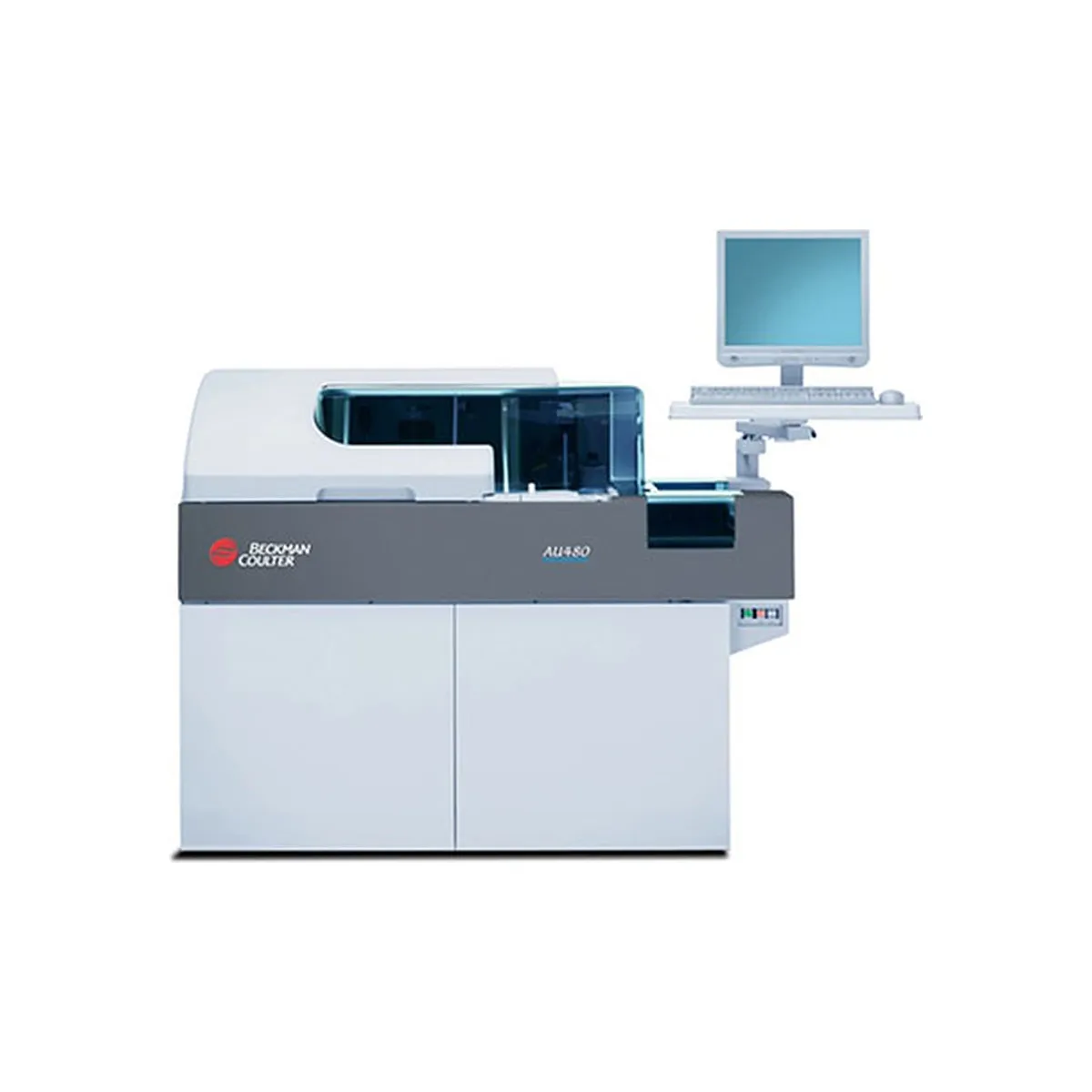

Beckman Coulter AU480

The AU480 chemistry analyser is the ideal Clinical Chemistry Analyzer that will allow you to enhance your Laboratory efficiency through a powerful and robust system.

Ideal for low- to mid-volume hospitals and laboratories, or as a dedicated specialty chemistry or STAT analyser the AU480 can outperform any analyser in its class, with a throughput of up to 400 photometric tests per hour (up to 800 with ISEs), increased onboard testing, reduced sample volume and easy operation.

Broaden your test offerings with more than 120 different Beckman Coulter system reagent applications available
Conduct quick priority testing using the AU 480 clinical chemistry analyzer’s STAT wheel
Turn around critical samples fast with sample pre-dilution and auto-repeat of over-range results

Pricing is quoted per project. Tell us your volumes and destination and we will send availability and a quotation.

Manufacturer: Beckman Coulter · United States
Category: Clinical Chemistry

About the Beckman Coulter AU480

For more information and to view more from Beckman Coulter’s line of Chemistry analyzers you can visit this link: https://www.beckmancoulter.com/products/chemistry

Ryvex supplies the Beckman Coulter AU480 to laboratories in the Caribbean and Latin America. Product availability and registration can vary by country — ask us about your market.

Specifications

Analytical System	Fully automated, random access chemistry system with STAT capability
Analytical Principle	Spectrophotometry and potentiometry
Analytical Types	Endpoint, rate, fixed point and indirect ISE
Analytical Methods	Colorimetry, turbidimetry, latex agglutination, homogeneous EIA, indirect ISE
Simultaneously Processed Analytes	60 photometric tests + 3 ISE, 120 pre-programmed onboard tests
Throughput	400 photometric tests/hour; maximum of 800 with ISE
ISE Throughput	200 samples/hr. Maximum tests/hr: 600 if ISE only
Sample Types	Serum, plasma, urine, other
Sample Feeder	Racks with 10 samples each (barcodes on primary tubes and on racks); capacity of 80 samples; continuous loading
Sample Tubes	Primary and secondary tubes; diameter from 11.5 to 16 mm; height from 55 to 102 mm, nestled micro sample cups
STAT samples	Up to 22 positions for STAT samples via cooled turntable. Easy-to-operate interrupts between tests. Auto-repeat run capability.
Sample Volume	1–25 µL in 0.1 µL steps (1-25 µL for repeats)
Reagent Capacity	76 positions for (R1+R2, detergent position). Holds 15, 30 and 60ml bottles.
Reagent Storage	Refrigerated (4–12°C)
Reagent Volume	R1: 10–250 µL; R2: 10–250 µL (in 1 µL increment)
Total Reaction Volume	90–350 µL
Reaction Cuvette	Permanent glass cuvettes
Reaction Time	Up to 8 minutes, 37.5 seconds
Reaction Incubation	37°C, dry bath
Photometry System	Direct assay through the reaction cuvette (0–3.0 OD) mono and bichromatic measurements possible
Wavelength	13 different wavelengths between 340–800 nm
Calibration	Auto calibration, cooled calibrator positions; master calibration established by two-dimensional barcode
Quality Control	Auto QC, cooled QC positions
Rerun	1. Auto rerun and manual rerun available 2. Automatic sample increase, decrease or normal repeat 3. Reflex testing
Sample Pre-dilution	Dilution ratio: Fixed to 3, 5, 10, 15, 20, 25, 50, 76 or 100
Test Requisition	Individual and profile test requisition via online, mouse, function keys and touch-screen
Sample Integrity	Lipaemia, Haemolysis and Icterus analysis. Sample clot detection and probe crash protection.
Online	RS232C. Full uni- and bidirectional communication possible.
Software	Windows 7®
Data Storage	Sample number 100,000 samples. Reaction Data 200,000 tests.
Dimensions (W x H x D)	ANL: 1,450 x 1,205 x 760
Power Supply	100–240v; 60 Hz/ < 3.5 kVA
